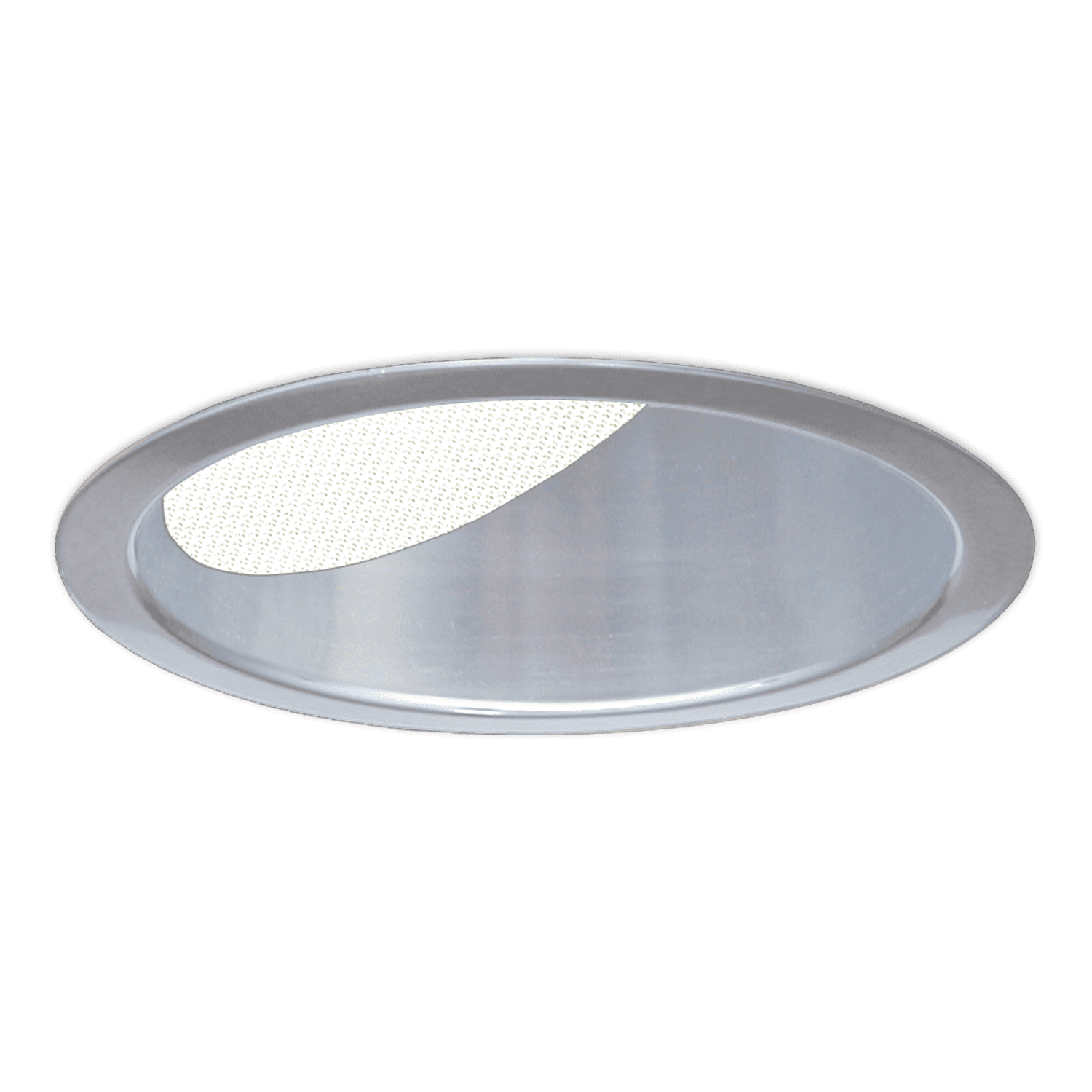

SRR-07618 7" Symphony Lensed Wall Wash

Type IC Optional • 2500-6500L

25° Fixed Tilt • Used in conjunction with Symphony Remote Drivers

Product Specifications

  • Listings/Codes: Air Tight, Build America, Buy America (BABAA), FCC Part 15, IC Rated, IEC/EN 60601-1-2, UL Wet-Listed
  • Type: Wall Wash
  • Aperture/Size: 7″
  • Mounting: Recessed
  • Shape: Round
  • Lumens: 2810, 3828, 4761, 5516
  • Installation Type: Fire Box, New Construction, Remote Driver
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 35.2, 43, 57.5, 73.3
  • Voltage: 120-277
  • Dimming: 0-10V, DMX
  • Lens: Regressed
  • Trim: Wall Wash
  • Fixture Depth: 5-5/8″
  • Emergency Options: Remote Inverter

Beam Spread

  • Wall Wash
    Wall Wash

Trim Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Custom Finish
