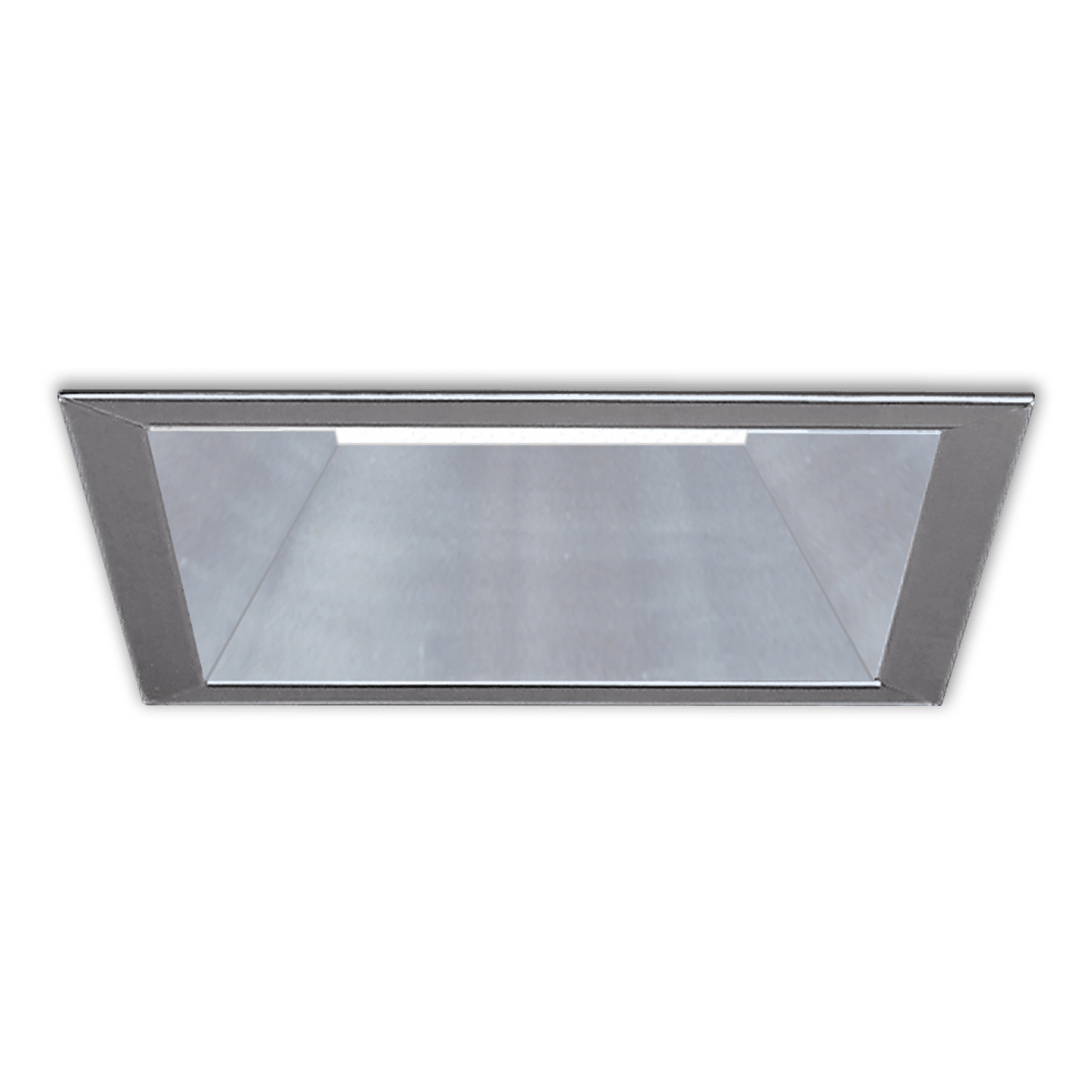

LRS-06505 6" Square Open Appearance Downlight

Natatorium Option Available

2500-6500L • 4 Beam Spreads Available

Product Specifications

  • Listings/Codes: -40°C Temperature Rating, Build America, Buy America (BABAA), FCC Part 15, IEC/EN 60601-1-2, UL Wet-Listed
  • Type: Downlight
  • Aperture/Size: 6″
  • Mounting: Recessed
  • Shape: Square
  • Lumens: 2932, 3863, 4816, 6086
  • Installation Type: Fire Box, New Construction
  • Location: Covered Ceiling Exterior, Interior
  • Light Source: LED – Static White
  • CRI: 80+, 90+
  • CCT: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
  • Wattage: 36.7, 44.6, 59.6, 73.3
  • Voltage: 120, 277
  • Dimming: 0-10V, DALI, DMX, EcoSystem
  • Lens: Open Look
  • Trim: Flare, Glow Ring
  • Fixture Depth: 5-5/8″
  • Emergency Options: Integral Battery Backup, Remote Battery Backup, Remote Inverter

Beam Spread

  • SPT 15 Degrees
    SPT
  • NFL 35 Degrees
    NFL
  • MFL 55 Degrees
    MFL
  • WFL 75 Degrees
    WFL

Trim Finishes

  • White Enamel
    White Enamel
  • Clear Specular
    Clear Specular
  • SofTex Semi-Specular
    SofTex Semi-Specular
  • Black Enamel
    Black Enamel
  • Bronze Enamel
    Bronze Enamel
  • Custom Finish
